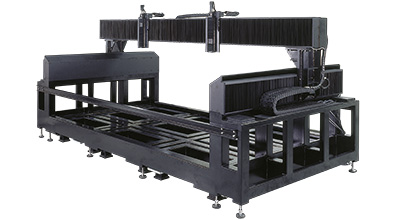

Linear motor gantry

The linear motor gantry has been developed for a water jet cutting system. The X and Y axes are driven by linear motors, whereas both the Z axes are driven by servo motors via a KK spindle drive axis with integrated linear guideway. The water-resistant bellows provides the axes with reliable protection against splash water. The linear axes are fully mounted on the steel frame and supplied as a plug-and-play gantry.


Requirements:
  • High synchronism
  • High dynamism
  • High accuracy


HIWIN component:
  • LMS linear motor
  • QH linear guideways
  • KK linear axes (Z axis)
  • Steel frame in line with customer requirements
