precision gantry

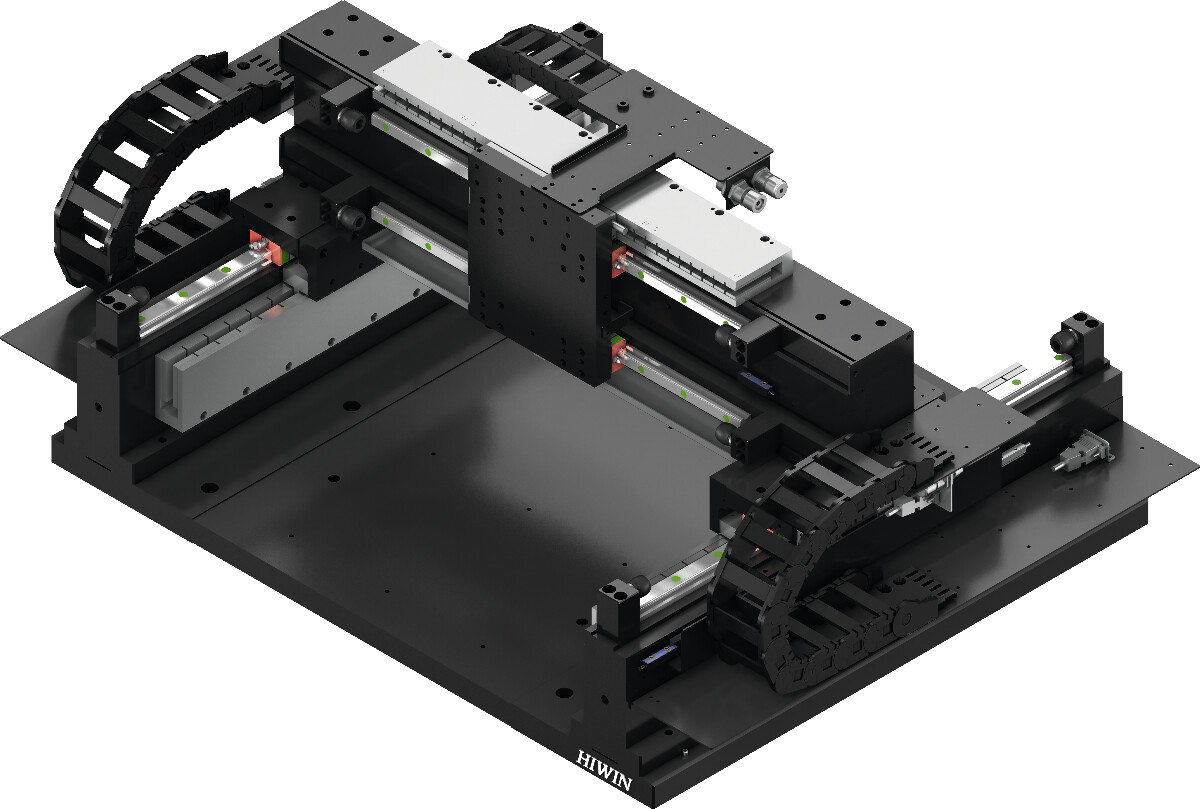

Aluminium gantries satisfy the highest requirements when it comes to precision and dynamic response. Depending on the ambient conditions and the dynamic requirements, gantries that are driven on both sides or on one side are available. The HIWIN standard offers different series with a wide variety of options. Customised solutions can also be developed with these options. Different drive options (linear motor or shaft) are also available for the Z-axis. Prefabricated drawings and 3D models can be found on the website.
6 product(s)
Type
amax
vmax
Stroke X-axis
Stroke Y-axis
Load capacity
Repeatability
Precision (calibrated)
Flatness / 300 mm
Straightness / 300 mm
LMG3A-CB5-2CEFE4-300-300-X10C
 50 5 300 300 10 ± 1 ± 3
LMG3A-CB5-2CEFE4-600-300-X10C
 50 5 300 600 10 ± 1 ± 3
LMG3A-CB5-2CEFE4-600-600-X10C
 50 5 600 600 10 ± 1 ± 3
LMG2A-CB5-CEFE4-300-300-X10C
 50 5 300 300 10 ± 2 ± 3
LMG2A-CB5-CEFE4-600-300-X10C
 50 5 300 600 10 ± 2 ± 3
LMG2A-CB5-CEFE4-600-600-X10C
 50 5 600 600 10 ± 2 ± 3
